RE-FINE SCREW

Cousin of the Fine Screw ™ with a double twist at the head for drawing strength.  Can be used for siding or any delicate project like crown molding, railings, PVC, great for small adjustments.
Features

USE

Commonly used for trim board, railings and fine carpentry

HEADTYPE

Very small finishing head

RECESS

Tight Star Recess system grasps the U-Bit  tightly and can be installed with one hand.

POINT

Tapper Point which consists of the Cork Screw Start and Blade Cutting Thread for easy piercing and alleviating strain on the material.

SIZES

#8 and #9

LENGTH

from 1-1/4 inch to 3-1/8 inch

COATING

It is hexavalent chromium (CR6+) free and complies with the strictest standards governing chemical substances.

MATERIALS

Available in Case Hardened Carbon Steel or  316 Stainless Steel



Documents
DRAWINGS
ALLOWABLE DESIGN LOADS 316 SS
GOLD COATING
FEATURES

RE-FINE SCREW





















U2 Part#

Size

L

HD

Tx

Pieces per Box*





#

inches

inches



     B

P

H



R08102000

8

2"

0.196

10

4,500

565

100



R08102500

8

2-1/2"

0.196

10

3,500

475

100



R08103125

8

3-1/8"

0.196

10

2,000

400

100



R09103125

9

3-1/8"

0.232

15

2,000

315

100

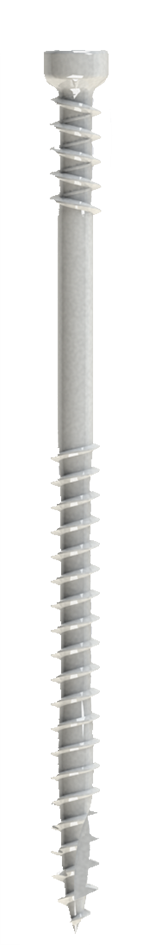

White

















Q08102000

8

2"

0.196

10

4,500

495

100



Q08102500

8

2-1/2"

0.196

10

3,500

390

100



Q08102750

8

2-3/4"

0.196

10

3,000

350

100



Q08103125

8

3-1/8"

0.196

10

2,000

290

100





















316 Stainless Steel

















N08102500

8

2-1/2"

0.196

10

3,500

386

100



N08103000

8

3"

0.196

10

Coming in 2021



      *Add extention letter of Pieces per box for full U2 Part#
