What Sets Our truss Screw Apart?

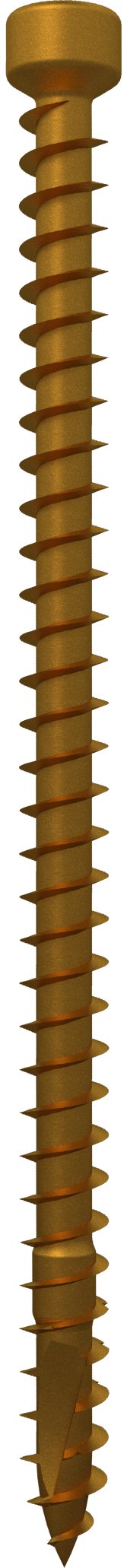

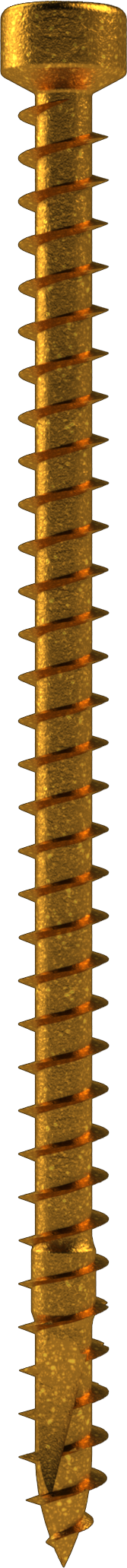

The U2 Fasteners™ self-tapping Truss Screw™ is designed to provide a consistent and efficient fastening solution for truss and framing installations where angled driving and full-thread engagement are required. Its trim-style countersunk head seats cleanly, while the larger T30 drive offers improved control during demanding installations.
The Truss Screw™ is engineered with structural applications in mind to support reliable performance in appropriate construction uses.
Product Images
| Use | Used for truss and framing installations where controlled angled fastening and full-thread engagement are desired. Suitable for construction applications in accordance with best practices and available evaluation information. |

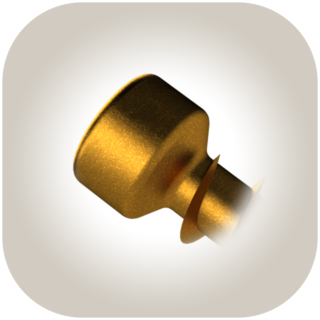

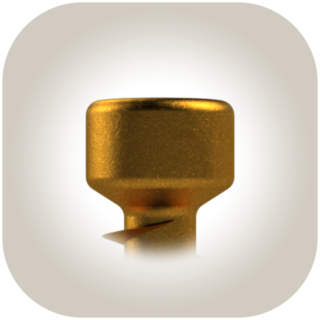

| Headtype | Trim-style countersunk head scaled to accept a T30 drive, combining clean seating with increased drive engagement for secure installation in demanding truss and framing applications. |

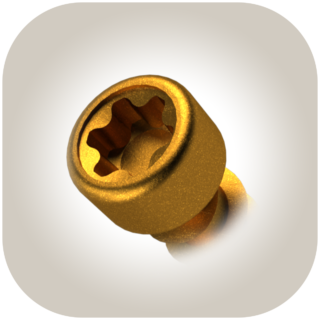

| Recess | Tight Star Recess™ system is designed to grip the U-Bit securely, enabling confident one-handed installation with excellent driving control. |

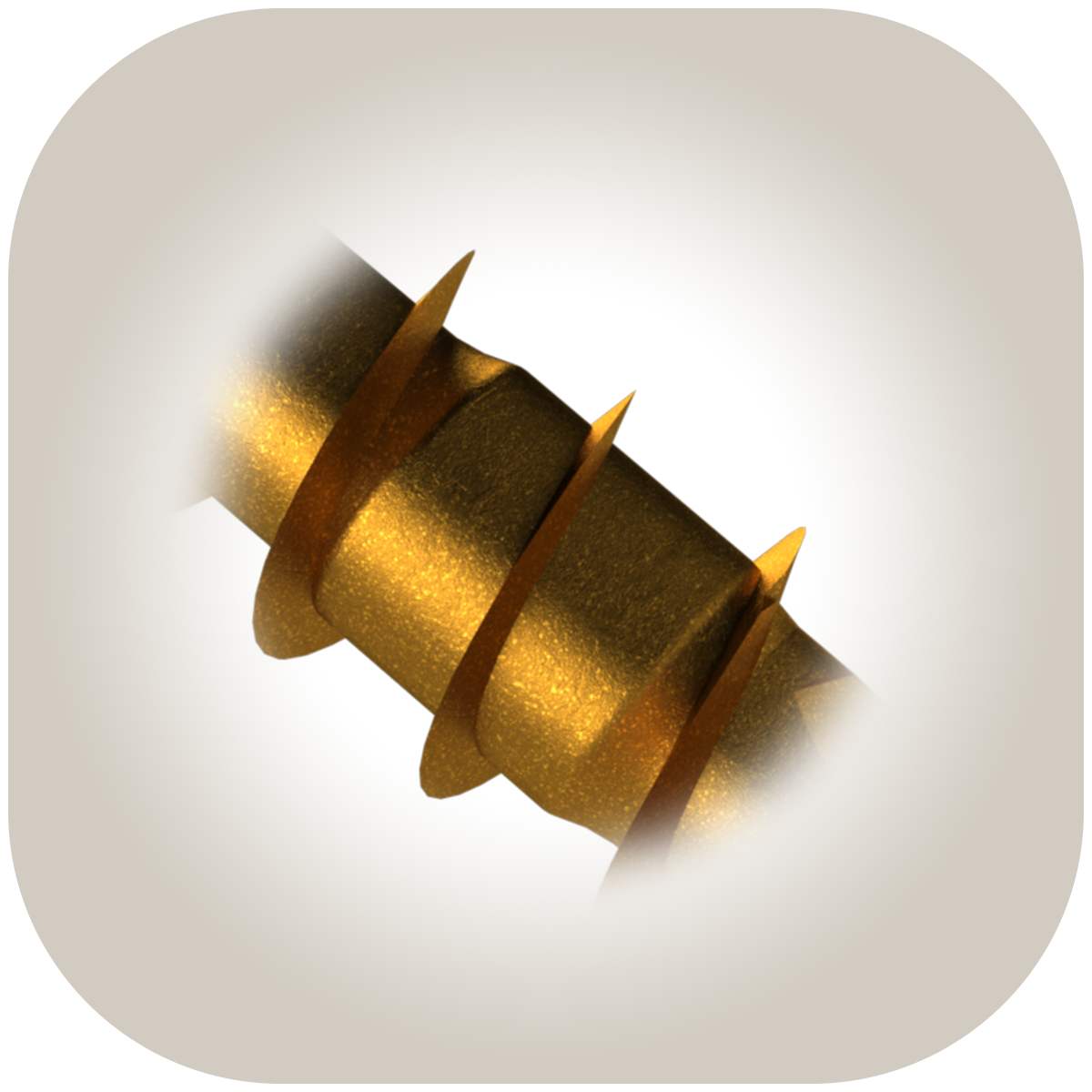

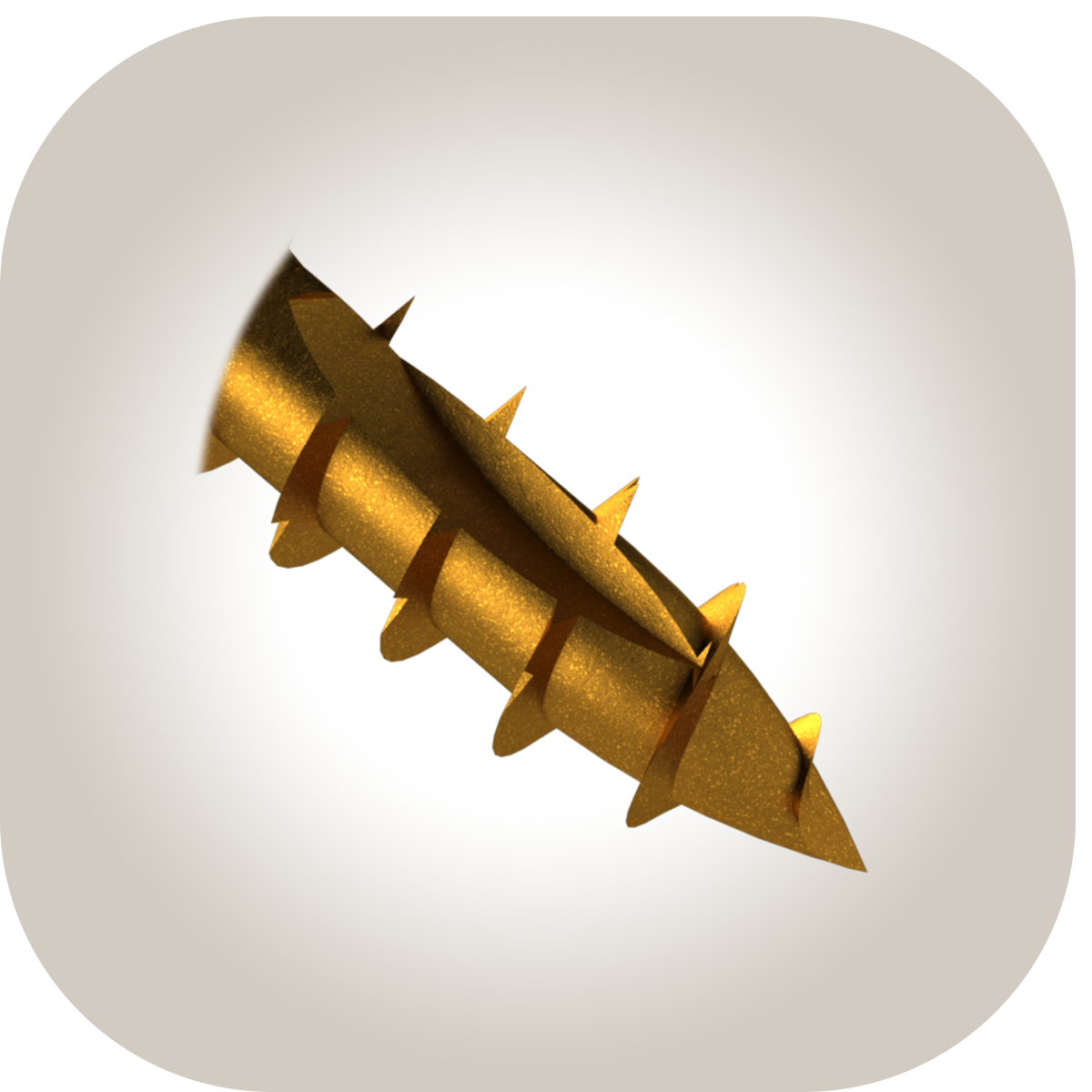

| Point | Self-tapping Tapper Point featuring a Corkscrew Start, Blade Cutting Thread, L-Cuts, and the Bulge™. This design allows for fast starts, efficient material penetration, reduced splitting, and smoother driving with lower installation torque in many applications without pre-drilling. |
| Sizes | #1/4 |
| Length | 4-1/2 inch and 6 inch |
| Coating | Available with a gold corrosion-resistant coating approved for use with ACQ- and MCQ-treated lumber. The coating system is hexavalent chromium (Cr6+) free and complies with applicable standards governing restricted chemical substances. It is selected to match the intended application environment and treated lumber compatibility. |
| Materials | Available in Case Hardened Carbon Steel |
